Quick Specifications
Working Height
12.2m 40ft
Platform Height
10.2m 33ft 6in
Working Outreach
6.1m 20ft
Safe Working Load
200kg 440lbs500lbs
Minimum Weight
3435kg 7575lbs
Full Specifications
Complete technical data for the HR12N.

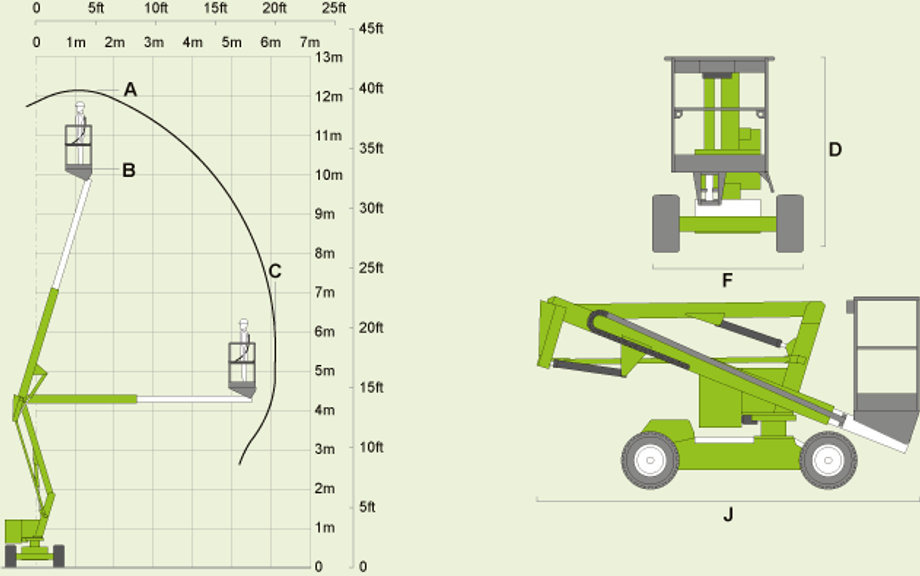

Working Height (A)
12.2m 40ft
Working Outreach (C)
6.1m 20ft
Platform Height (B)
10.2m 33ft 6in
Machine Width (F)
1.5m 4ft 11in
Machine Height (D)
1.9m 6ft 3in
Machine Length (J)
4.1m 13ft 5in
Travel Speed
3.4km/h 2.1mph
Gradeability
25%
Gradeability
14°
Turning Radius
4.2m 13ft 9in
Minimum Weight
3435kg 7575lbs
Safe Working Load
200kg 440lbs 500lbs
Cage Width
1.1m 3ft 7in
Cage Depth
0.65m 2ft 2in
Power Options
Key Features
Engineered for performance and safety, these key features help you work smarter and more efficiently at height.
Common Applications
Versatile in use, these common applications show where this Niftylift performs best.
Downloads and Enquiries
Download key documents and contact our team for expert guidance on choosing the right platform.
